Description

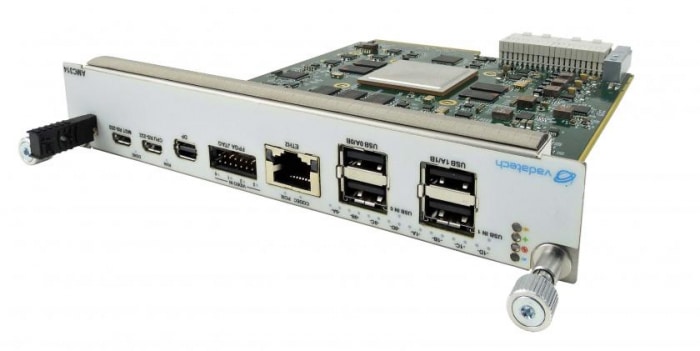

The AMC314 is an AMC FPGA module with Zynq UltraScale+ EV part. The AMC is compliant to AMC.1, AMC.2, AMC.3 and AMC.4 specifications. It is based on Xilinx UltraScale+ XCZU7EV MPSoC FPGA with an RTM (such as the MRT314A).

The Module has a single bank of 8GB of DDR-4 64-bit wide with ECC to the PS and in addition dual bank of x32 DDR-4 to the PL for a total of 8GB.

The RTM may provide up to four Video streaming and dual USB ports to the FPGA.

The module brings out as pass thru 4 x USB2.0 to the front.
