Description

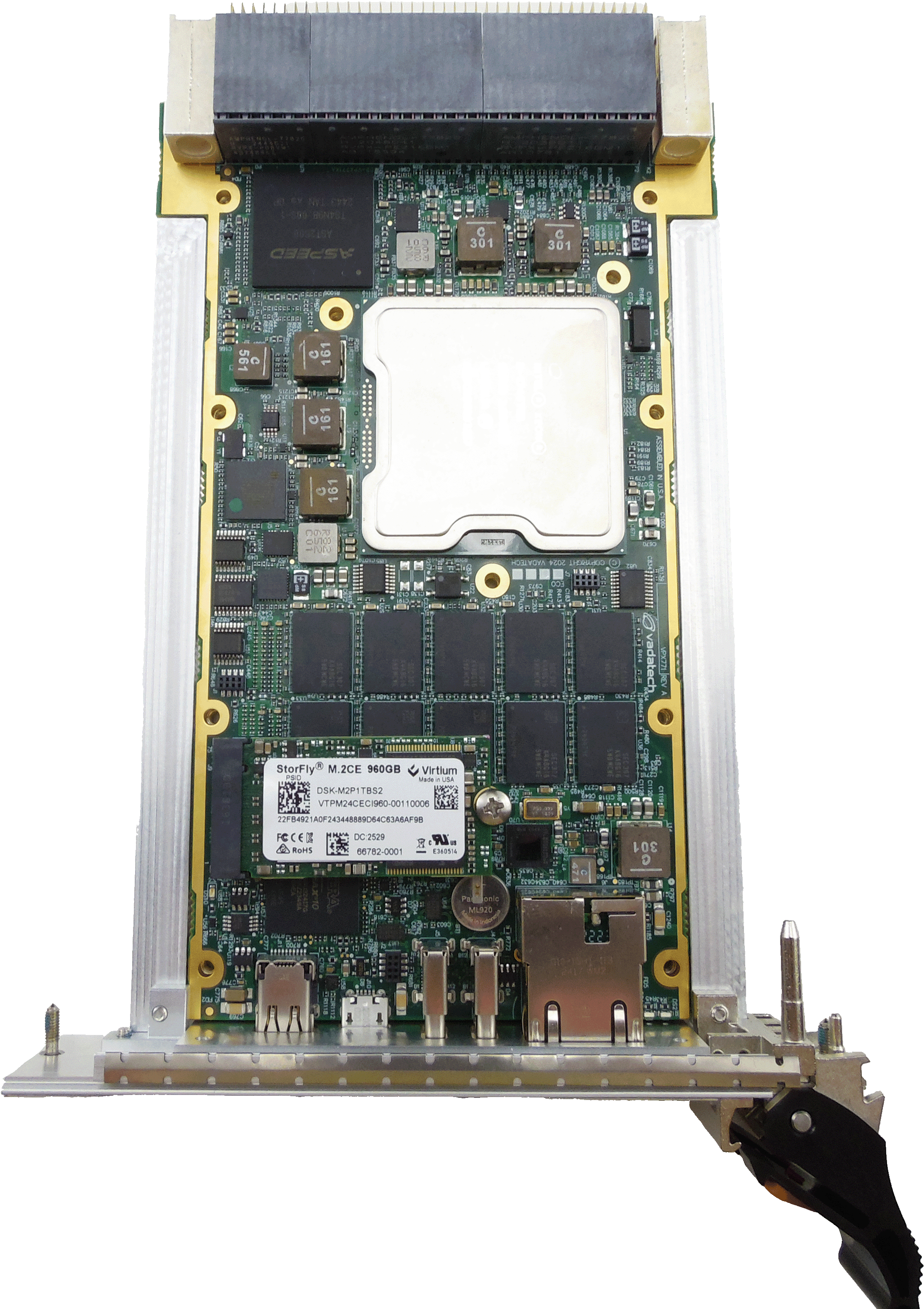

The VPX771 is a Processor VPX (PrVPX) in a 3U VPX form factor based on the Intel® Processor Xeon® D-1746TER (Ice Lake-D) for general purpose processing in demanding embedded applications. The D-1746TER has 10 cores with three channels of DDR4 memory.

The VPX771 comes with 48GB of DDR4 memory with ECC and a M.2 NVMe storage socket. The BIOS allows booting from onboard M.2, PXE, and/or USB.

The Module provides PCIe x16 Gen3 on P1 which can bifurcate to quad x4 or dual x8. The Module has dual PCIe x4 Gen3, dual 40/100GbE or octal 10/1GbE on P2.

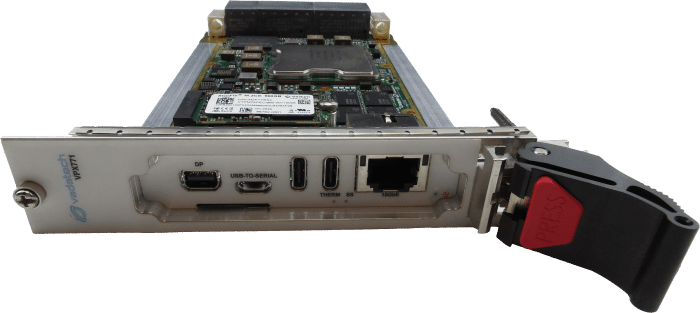

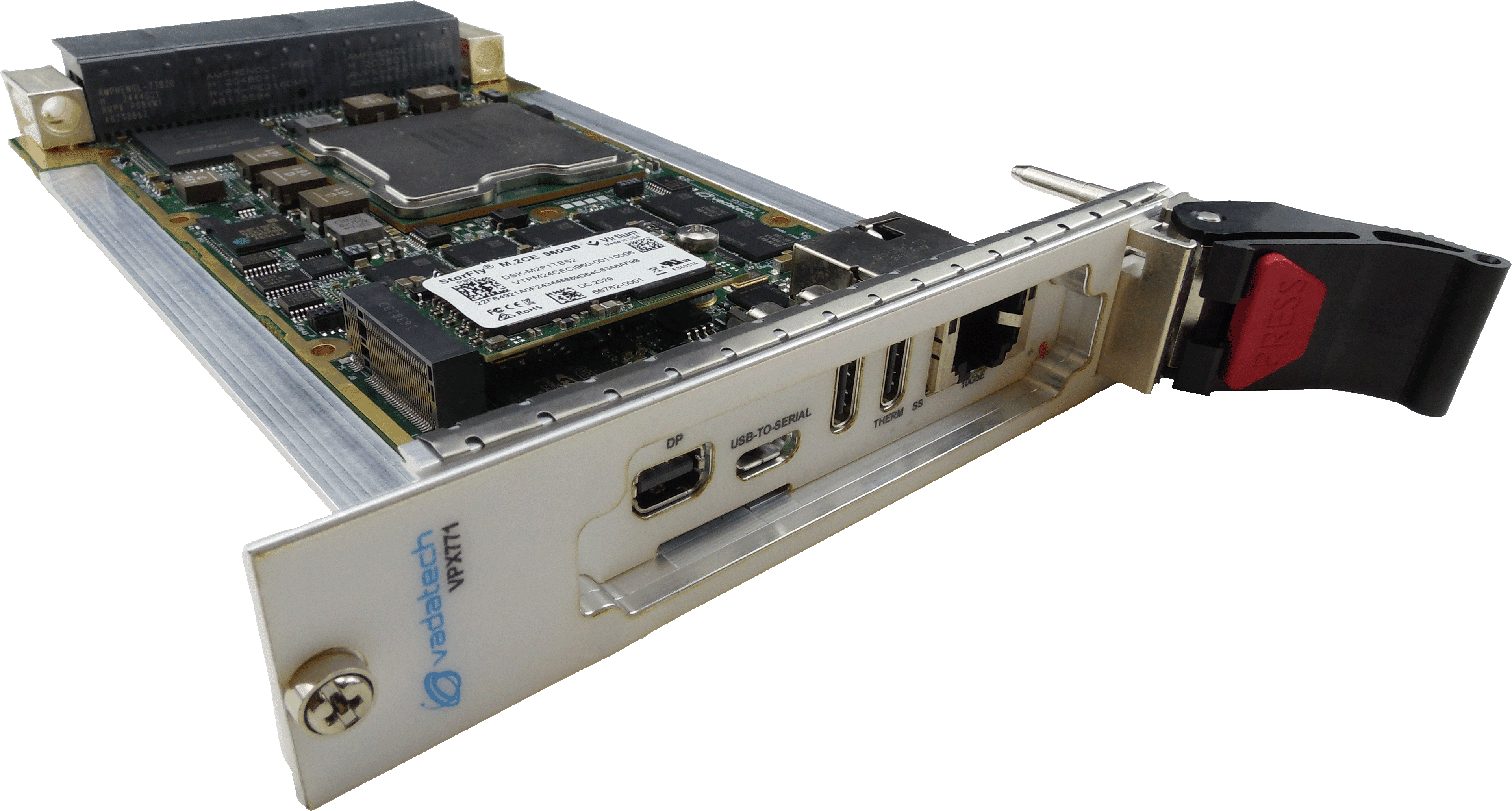

On the front panel the VPX771 has 2x USB 3.0 type C connectors for extended storage, peripherals, etc., native Display Port (DP), 10GBASE-T as well as three RS-232 ports which connects to the IPMI, BMC and the CPU.

The module utilizes the Intel Bootguard PFR via on board FPGA and Trusted Platform Management (TPM). The FPGA can be reprogrammed by the customer to meet their security beyond what is provided by the PFR.

Linux OS is standard on the VPX771, consult VadaTech for other options.
