Description

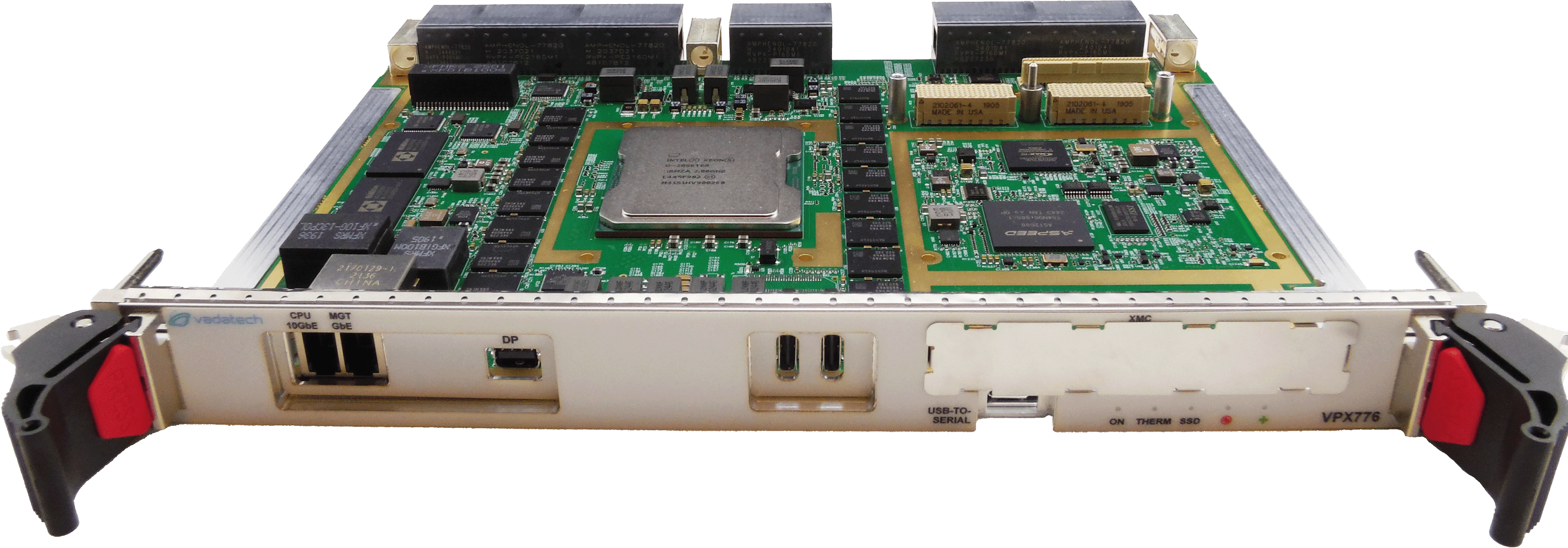

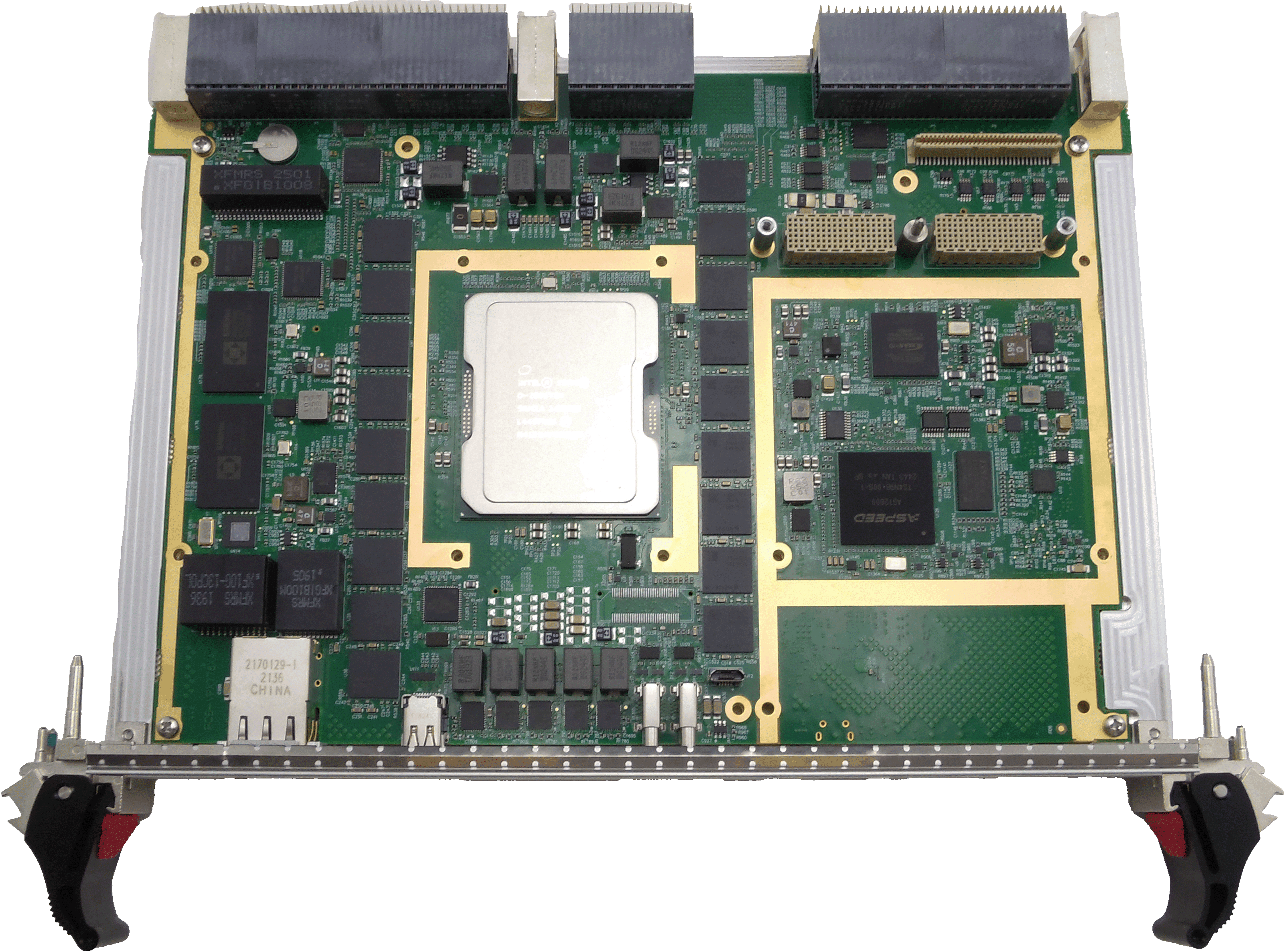

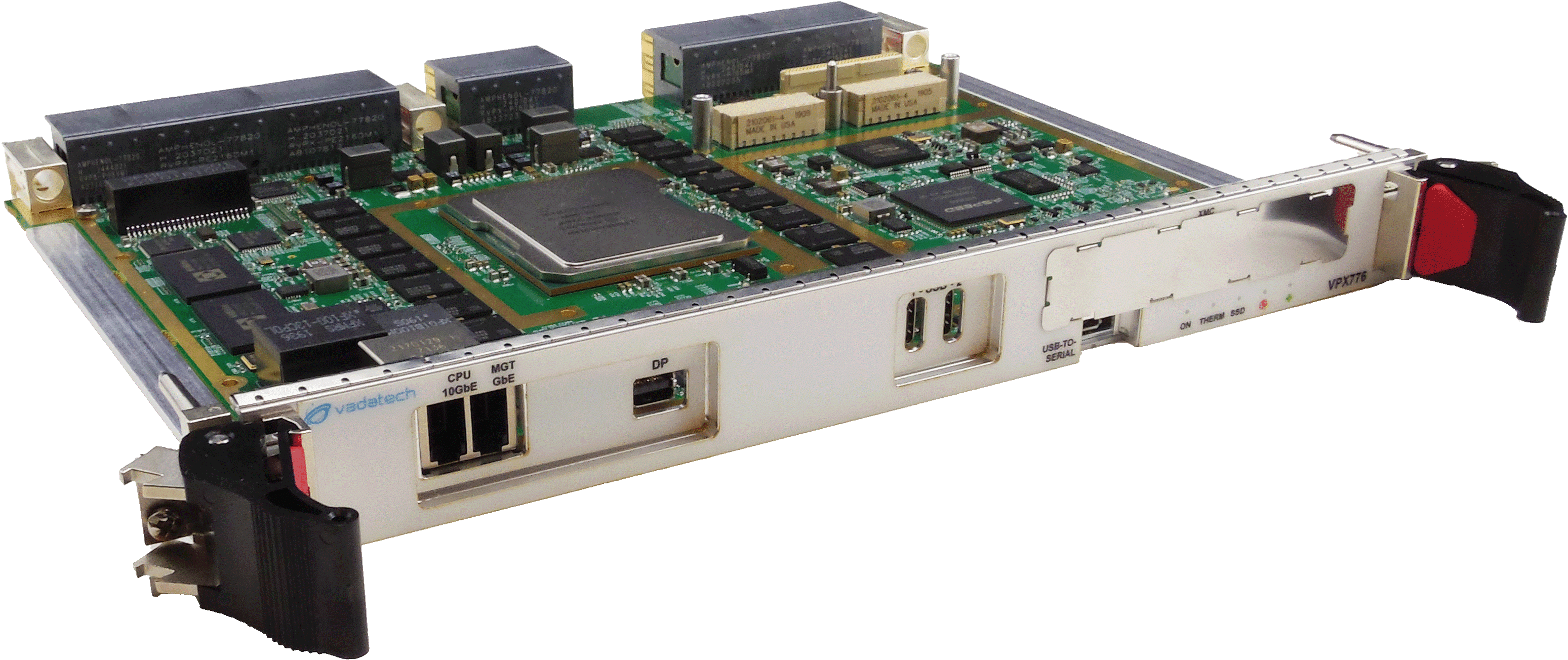

The VPX776 is a Processor VPX (PrVPX) in a 6U VPX form factor based on the Intel® Processor Xeon® D-2896TER (Ice Lake-D) for general purpose processing in demanding embedded applications. The D-2896TER has 20 cores with four channels of DDR4 memory.
The VPX776 comes with four channels of DDR-4 for total of 128GB of memory with ECC and dual 128GB of SSD Storage. The BIOS allows booting from onboard SSD, PXE, and/or USB.
The Module has dual 40/100GbE or octal 10/1GbE with additional quad GbE on P1. The Module provides PCIe x16 Gen4 on P2/P3 which can bifurcate to quad x4 or dual x8.

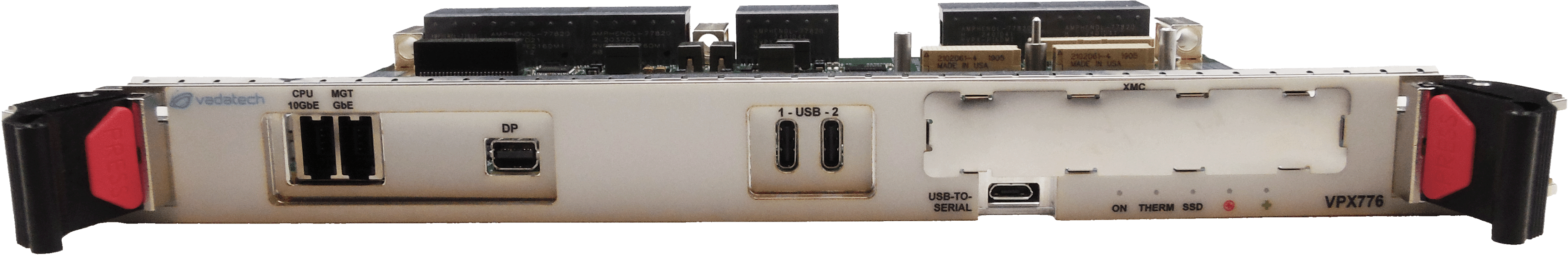

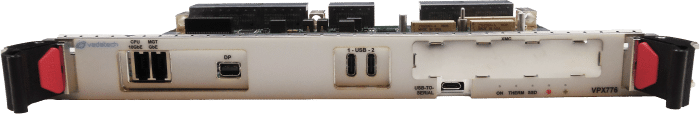

On the front panel the VPX776 has a dual USB 3.0 type C connectors for extended storage, peripherals, etc., native Display Port (DP), 10GbE as well as USB 2.0 for RS-232 to USB.
The VPX776 has dual XMC slot for additional I/O expansion. The XMC I/O is routed to the backplane per VITA 46.9 P5w1-P64s+P6w1-X12d+X8d.
The module utilizes the Intel Bootguard PFR via on board FPGA and Trusted Platform Management (TPM). The FPGA can be reprogrammed by the customer to meet their security beyond what is provided by the PFR.
Linux OS is standard on the VPX776, consult VadaTech for other options.
