Description

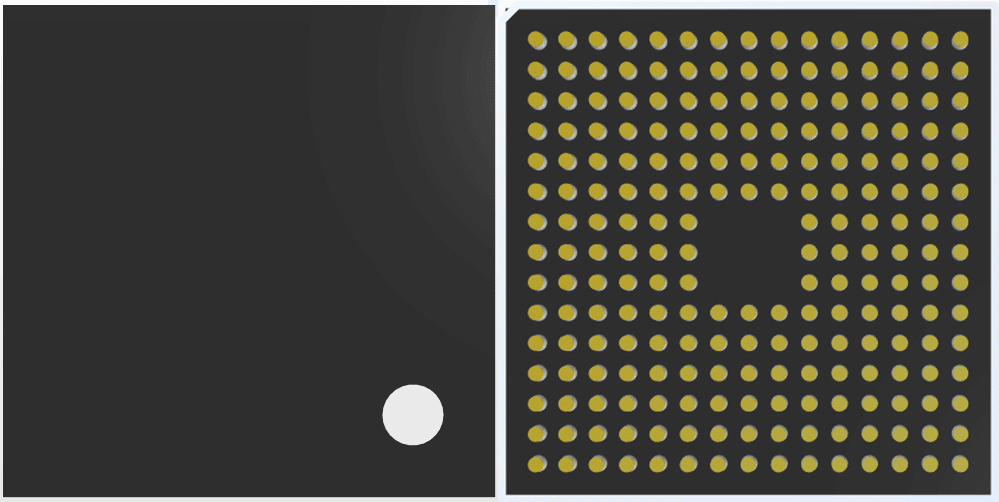

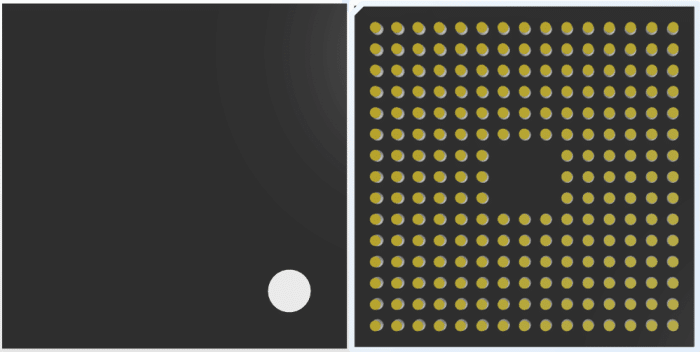

The VT061 is a reference schematic with software which provides a complete hardware and software solution to accelerate the delivery of ATCA, AMC and VPX modules with full IPMI Health Management support. The CPU is based on ARM 32-bit Cortex-M33 (packaged in a 13mm x 13mm BGA) with integrated 4MB of flash, 2.5MB of SRAM, multiple I2C ports, RS-232, WDT, RTC, A/D, etc. The VT061 firmware is field upgradeable and configurable via the I2C bus, RS-232, and supports HPM 2.0.

In most cases the default VT061 firmware can provide all the necessary ATCA, AMC, and VPX IPMI functionality without modification to the software. VadaTech can modify the software to meet customer specific design changes. For customers wishing to customize the software, the VT061 development kit is all that is needed to add enhancements.

The VT061 is the most cost-effective solution in the market. The MMC can be purchased from VadaTech pre-programed.

An NDA is required to obtain the reference schematic and design tools. VadaTech has developed the following reference designs to help customer evaluation:

For the ATCA modules the MMC can manage an RTM per ATCA specification, up to 8 AMC (Advance Mezzanine Card), and up to four XMC and/or FMC/FMC+.

For the AMC modules the MMC can support two FMC/FMC+ modules as well as an RTM per µTCA.4.

For the VPX modules the MMC can support an RTM per VITA 46 as well two XMC per VITA 42 and/or two FMC/FMC+ per VITA 57.

Upon engagement with customer VadaTech will provide the refence design as well as review the MMC section of the customer’s schematic before fabrication. Vadatech can also provide full turnkey software for the MMC which is specific to the customer’s board for quick time to market.

VadaTech’s offerings also include Chassis, Chassis Manager, Power Entry Modules, and backplanes for complete ATCA, µTCA, and VPX system infrastructure deployment.
