Description

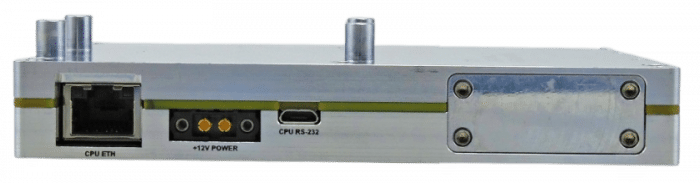

  • The VT560 is an integrated monolithic FPGA module in conduction cooled form-factor.
  • The VT560 is based on a Xilinx® UltraScale+ XCZU19EG MPSoC FPGA.  The FPGA has 1968 DSP Slices and 1143k logic cells. The XCZU19EG includes a quad-core ARM processor.
  • The Module has onboard 64 GB of Flash, 128 MB of boot flash and an SD Card.
  • The VT560 had dual RJ-45 connectors that can support 10GBASE-T over copper with Category 6, 6A and 7 twisted-pair cable.
  • The unit also supports 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX on standard Category 5e Unshielded Twisted Pair (UTP) cable.
  • The Module has transceiver-MAC to magnetics:
    • 10GBASE-T IEEE802.3an
    • 5GBASE-T IEEE802.3bz
    • 5GBASE-T IEEE8023.bz
    • 1000BASE-T IEEE802.ab
    • 100BASE-TX IEEE 802.3u
  • The VT560 supports both the IEEE1588 as well as SyncE and has a very high-end performance PLL which meets the G.8262 EEC Opt 1, 2 (SyncE).
  • In addition, the module has dual CoaXPress receivers per CXP 2.0 specification and can receive data at 12.5 Gbps with 40 meters of cable, and transmit at 21/42Mbit. It can also support up to 130 meters of cable at 1.25 Gbps.
  • The VT560 further provides 17 LVDS input/outputs, 2x RS-485, 8x +5V GPIO and high speed SERDES pair (RX+/- and TX+/- XOR). Each of the single-ended ports can be configured as input or output.
