Description

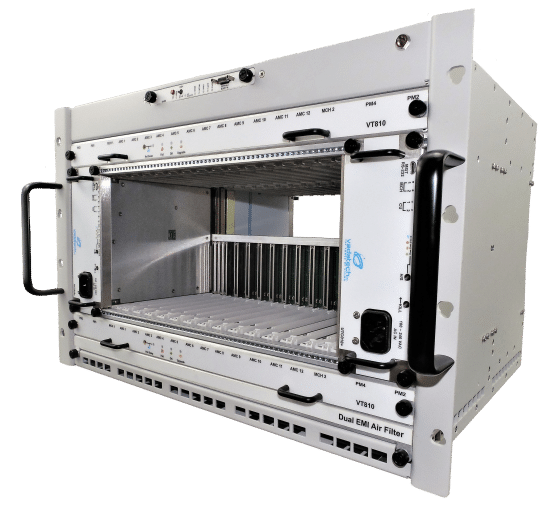

The VT810 is a 7U μTCA chassis that provides 12 AMC mid-height double-module slots that can accept any AMC.1, AMC.2, AMC.3 and/or AMC.4. It provides FCLKA, TCLKA, TCLKB, TCLKC and TCLKD to each slot.

The VT810 has full redundancy. It’s capable of having redundant MCH, Power Modules, as well as redundant Cooling Units (CU) for high availability. Ports 2-3, 12-15 and 17-20 are connected among the slots per the uTCA.4 recommendation.

The VT810 has a Telco Alarm as well as Redundant FRU information devices and carrier locators. A JTAG Switch Module (JSM) slot is available which routes to each JTAG port of the AMC.
