Description

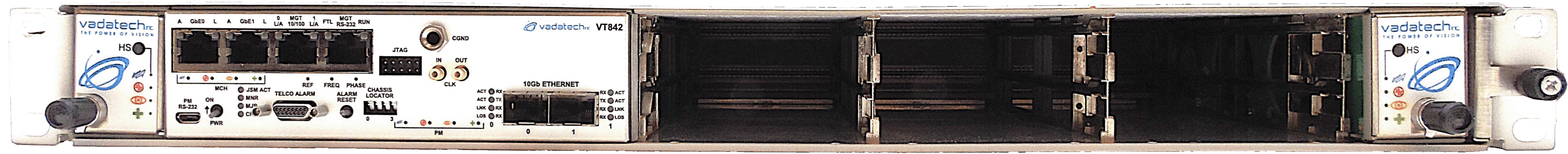

The VT842 is a 1U MTCA chassis that provides six mid size AMC slots that can accept any of the following Fabrics: PCIe, SRIO or 10GbE on ports 4 to 7 and 8 to 11, AMC.2 (ports 0 and 1) and AMC.3 (ports 2 and 3 are routed to adjacent slots). It provides FLCK, TCLKA, TCLKB, TCLKC and TCLKD to each AMC.

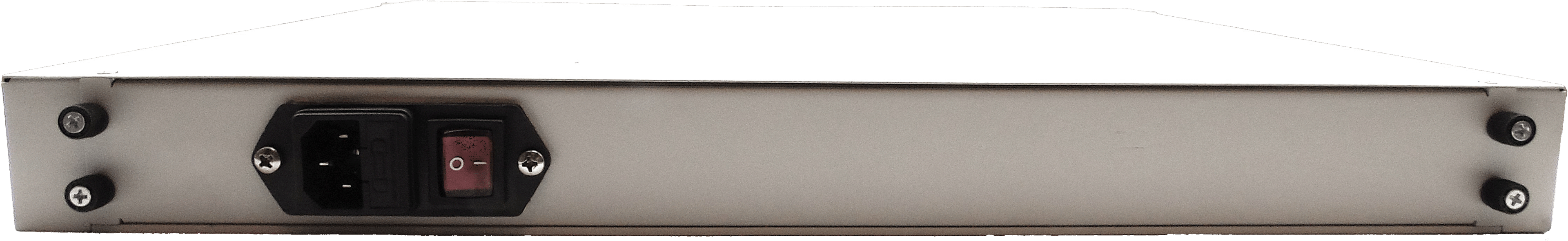

The VT842 has redundant Cooling Units. The Air Filter and Fan Trays are all hot swappable. The Power Entry Module (PEM) is removable for ease of serviceability.

The VT842 runs VadaTech proven second generation Management software based on it’s VT002 product. The shelf manager implements IPMI management, FRU management, and shelf environment management for power, thermal, E-keying, etc. The VT002 can run as the Shelf/MCMC or MCMC.

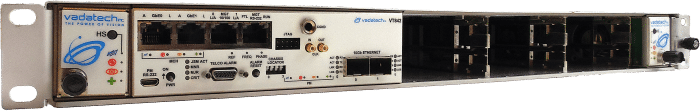

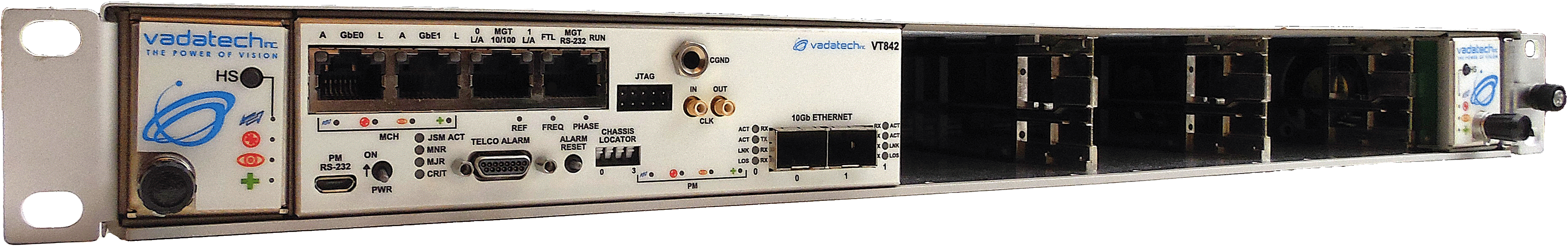

The VT842 has dual SFP+ on the front panel when utilizing the 10GbE as a fabric.
