Description

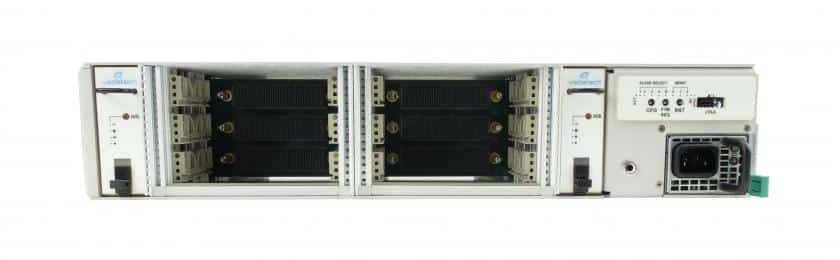

The VTX880 is a 2U VPX chassis with six 3U VPX slots. The chassis can accept 0.8-inch, 0.85-inch and 1.0-inch pitch modules and is ideal for commercial deployment.

Power Supplies

The VTX880 has a single AC input power supplies to provide 800W or -48V DC 650W. The chassis supplies 95W/slot and the AC input is universal.

Cooling and Temperature Sensors

The VTX880 is designed to meet the ANSI/VITA 65 standard. It provides right to left push/pull cooling (18 CFM per payload slot at 0.24 in-H2O @ 5000 feet) to the VPX payload and RTM slots. The Chassis has a removable Air Filter at the front.

Backplane

The backplane provides five 3U VPX payload slots in a star configuration, fully compliant to VITA 46.0 baseline specification. Also, additional support to the RTMs, compliant to VITA 46.10 and OpenVPX VITA 65.

JSM

There is an optional JTAG Switch Module to provide JTAG access to the rear.
