VadaTech, a leading manufacturer of integrated systems and embedded boards and chassis, enabling software and application ready platforms, announces VT801.

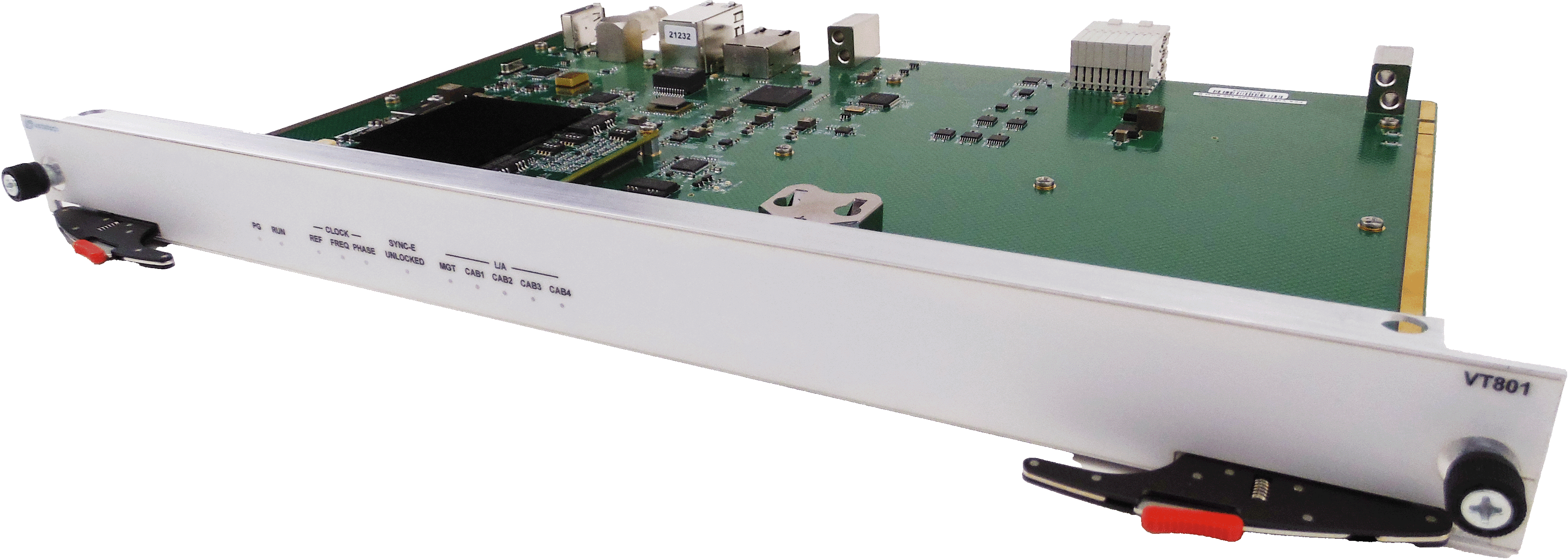

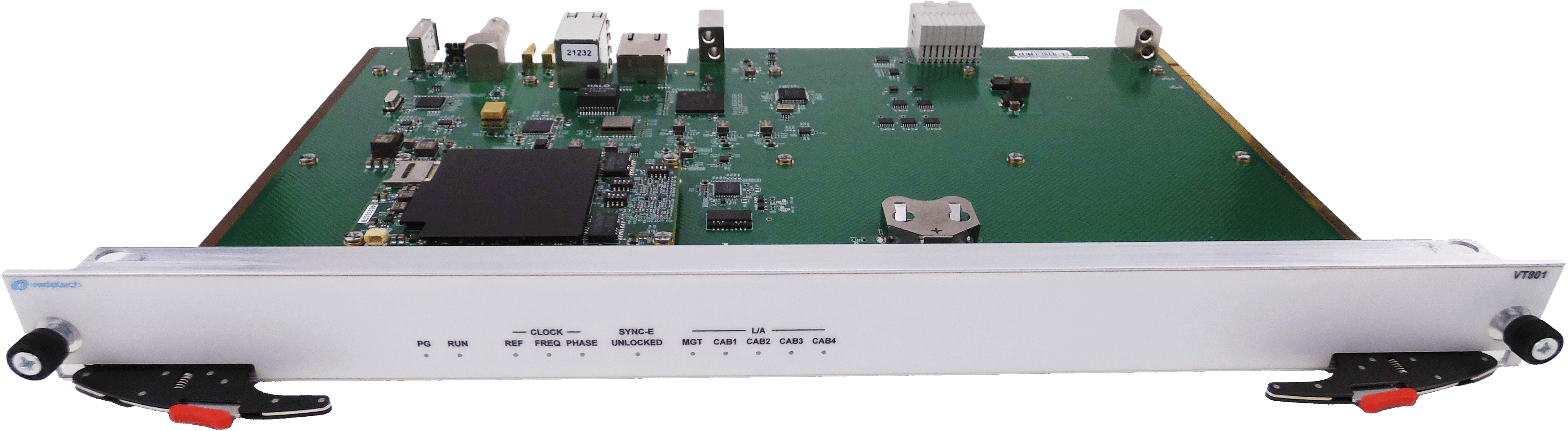

The VT801 is a custom form factor module which allows up to four VadaTech VT505 modules be utilized in a single VT979 chassis. The VT801 reduces the number egress ports when multiple VT505 are being utilized. The VT801 has an on-board Ethernet Switch which allows for the aggregation of four of the VT505 data output when utilizing the VT979 chassis. The module has a 1GbE and 10GbE for uplink to the external network. The module also distributes the clock to each of the VT505 modules via the VT979 chassis which is synchronized to either IEEE1588/SyncE and/or the external clock (i.e. 1PPS). The VT801 also takes the RS-232 port from each of the VT505 modules and converts them to a single USB port. The VT801 also accepts an external calibration signal and distributes it thru the VT979 chassis to the VT505 modules
- Ethernet Switch
- 1GbE to each slot with 1GbE and 10GbE uplink
- Up to four VT505 could be utilizing with the VT979 Chassis and a single VT801
- IEEE1588/SyncE with external clock option (i.e. 1PPS) for synchronization clock distribution
- Calibration signal distribution to the VT505s
- RS-232 aggregator via a single USB port which allows access to the VT801 serial port and four VT505 serial ports
- Utilizing the VadaTech VT040 module for Management
Please contact VadaTech’s sales team to discuss ordering options, system integration and technical support.
