Description

VT087, when used in conjunction with a VT088, forms a complete KVM extension over a secure LC Fiber link. Data is encoded using a proprietary algorithm which, together with the use of fiber, combats interception of sensitive data. The VT087/VT088 is our next generation product from the VT085/VT086.

The VT087 encodes the USB2.0 as well as dual DP++, Display Port (DP) or HDMI and transmits the data over LC fiber. The video can be up to 4K resolution on each of the two video inputs. The output (VT088 side) has video overlay capability with the overlay images being programmable and controlled over Ethernet by the user. Video encode/decode is lossless. The VT087 configuration and management are available via serial port.

The VT087/VT088 encoding/decoding and data processing is done in hardware for a very low latency protocol. The glass-to-glass latency is less than 20ms.

The module supports white listing of attached USB devices. The host USB can only numerate approved devices, preventing unauthorized access. It can also store a secure key to ensure the unit cannot be compromised.

The module utilizes ruggedize I/O connectors for harsh environments.

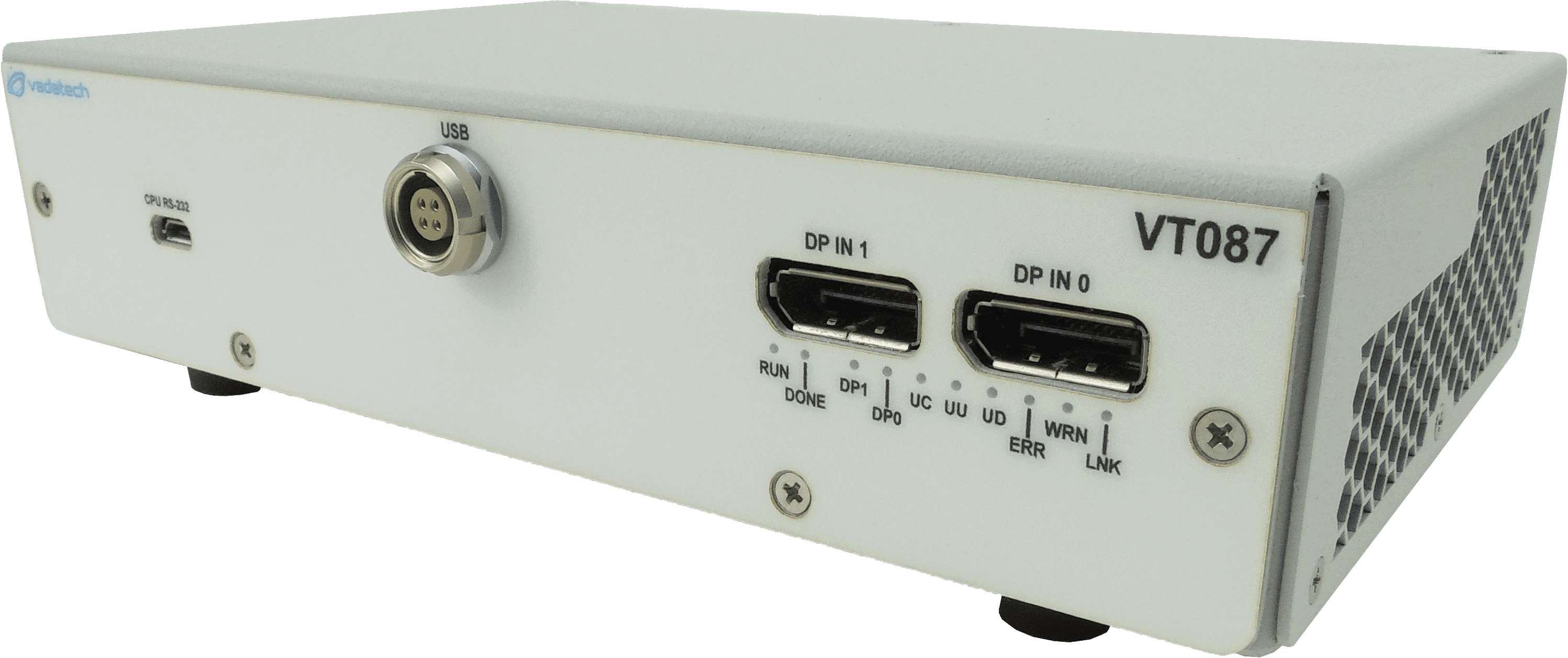

The VT087 is orderable with a fanless enclosure or optionally as a board-level product without enclosure. This allows customers to fully integrate the unit into their own user console.
